Your mounting hardware has been inspected and checked at our facilities, it should consist of:

• 10 Polygon Edge Clips
• 10 Stainless Steel Washers
• 8 Short Stainless Steel Screws
• 2 Long Stainless Steel Screws
• 2 Molybdenum Spacers

Legacy owners with non-logoed mud flaps please note- The sides facing the tires have a different finish to them while the opposite side (facing the reverse of the vehicle) has a grainier automotive type finish upon inspection.
Please install in this manner

Rear Flaps:

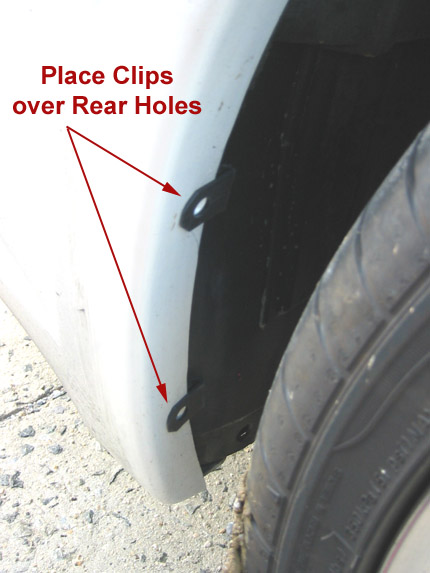

Place two polygon edge clips over the two holes in the rear bumper:

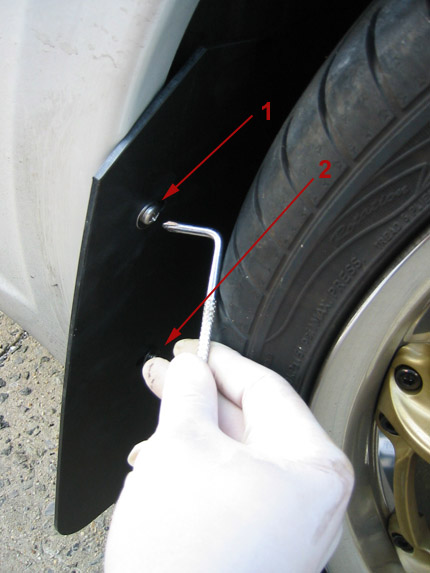

Place flap over clips and line up holes. Place a short screw and washer inside of the 2 holes and thread until snug, but still allows you to move the flap to adjust.
A 90 degree screwdriver will allow you to bolt flaps without removing the tire.

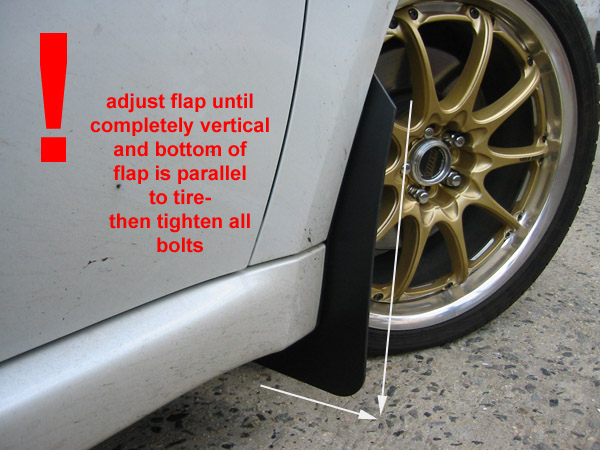

Adjust flaps until bottom of flap is parallel to tire, and side of flap is vertical.



Note: The hardware is quite strong and self threading but over-tightening the clips beyond their limit is not recommended on any of the hardware.

Front

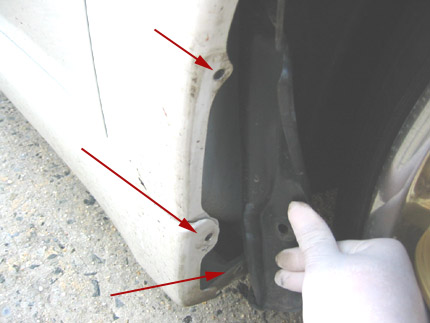

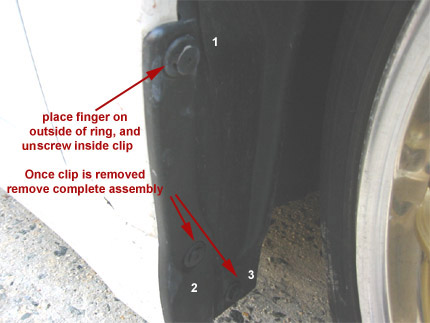

Turn wheel in order to gain access to fender liner clips. Remove the three liner clips as shown:

Pull liner back slowly in order to gain access to inside mounting points.

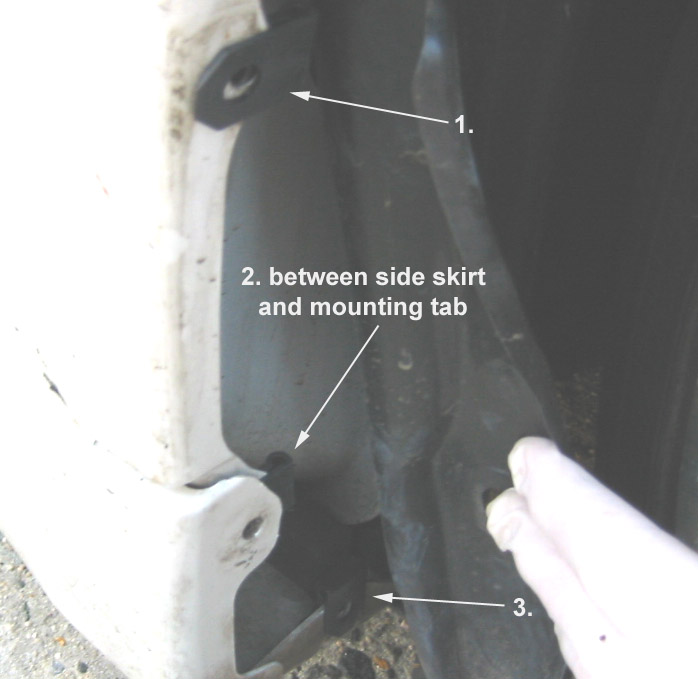

Place 3 clips over each of the mounting holes. Note clip # 2 is inserted between side skirt and vehicle mounting point:

Place liner back like before over the clips. Place front flap over liner, and hand thread a short bolt and washer over holes 1, 2. For hole number 3- place one of the spacers behind the flap- then thread the long screw through the complete assembly. Leave everything slightly loose in order to adjust the flap like the rear.

Adjust flaps until they are vertical and parallel with tire- then bolt down until snug.

Note: The hardware is quite strong and self threading but over-tightening the clips beyond their limit is not recommended on any of the hardware



Do the same for the other side, and enjoy!
